DKT1 System

Hidden mechanical fixing using undercut screws on the reverse side of the piece

Projects with complex cutting. Some highly complex façades include diverse formats in the same design. A flexible system is required that optimizes the points of fixture of the material on the sub-structure and which responds to the important loads of each project.

Image 15 of 1aa42b688f0d913234cb7318de69f024 11 in DKT1 System - Cosentino

Description

In the DKT1 system, according to the density of the fixings and minimum distances between perforations, a calculation is made of the individual forces to be absorbed by the material and the anchoring. Cylindrical perforation or undercut perforation achieve a clean and exact hole, where the peg and truncated cone-shaped screw work together in traction on the reverse side of the material.

The screw anchors to the profile, guaranteeing that the whole piece is fastened to the sub-structure. Dekton has this system certified for ventilated façades according to ETA 14/0413 and BBA 16/5346 for 12 mm and 20 mm thicknesses, although it can be used for other non-certified thicknesses.

Image 16 of @1ximagen 1 1 in DKT1 System - Cosentino

Detail 1. Vertical section

Image 17 of @1ximagen 2 1 in DKT1 System - Cosentino

Detail 2. Horizontal section

Image 18 of @1ximagen 3 1 in DKT1 System - Cosentino

Detail 3. Vertical section

Image 19 of @1ximagen 4 1 1 in DKT1 System - Cosentino

Detail 4. Horizontal section

1. Dekton | 2. Fixing Clip | 3. Horizontal Profile | 4. Propelling Screw | 5. Adjustable Screw | 6. Self-propelling Screw | 7. Vertical Profile | 8. “L” Separator' | 9. Thermal Insulation | 10. Supporting Wall | 11. Keil Anchoring | 12. Rupture of Thermal Bridge | 13. Padding

DKT1 Projects

Dekton, thanks to its resistance to flexo-traction (≥45 N/mm2), responds perfectly to the needs of this ventilated system, where wind and seismic activity are critical agents in calculating and designing the enclosure.

Dekton also offers a multitude of possibilities for cutting, in large or small format, regular or irregular shapes, etc., making it the ideal material for highly sophisticated and demanding solutions.

Cap Ferrat | Hicksville Long Island | Porsche

Image 20 of Rectangle 2@1x 11 in DKT1 System - Cosentino
Image 21 of Rectangle Copy in DKT1 System - Cosentino
Image 22 of Rectangle Copy 4@1x 11 in DKT1 System - Cosentino
Image 23 of Hicksville Long Island 21 in DKT1 System - Cosentino
Image 24 of Porsche 11 in DKT1 System - Cosentino

Do you need help with a project?

Contact our specialists for advice

Do you need help with a project?

Contact our specialists for advice

Other construction systems

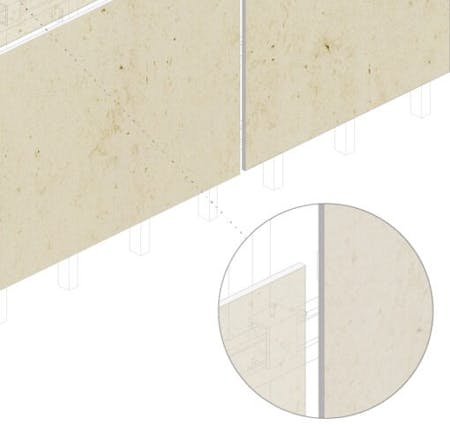

Image 25 of 1 DKT 1 100 510x482 1 in DKT1 System - Cosentino
